Spectrocolorimeter

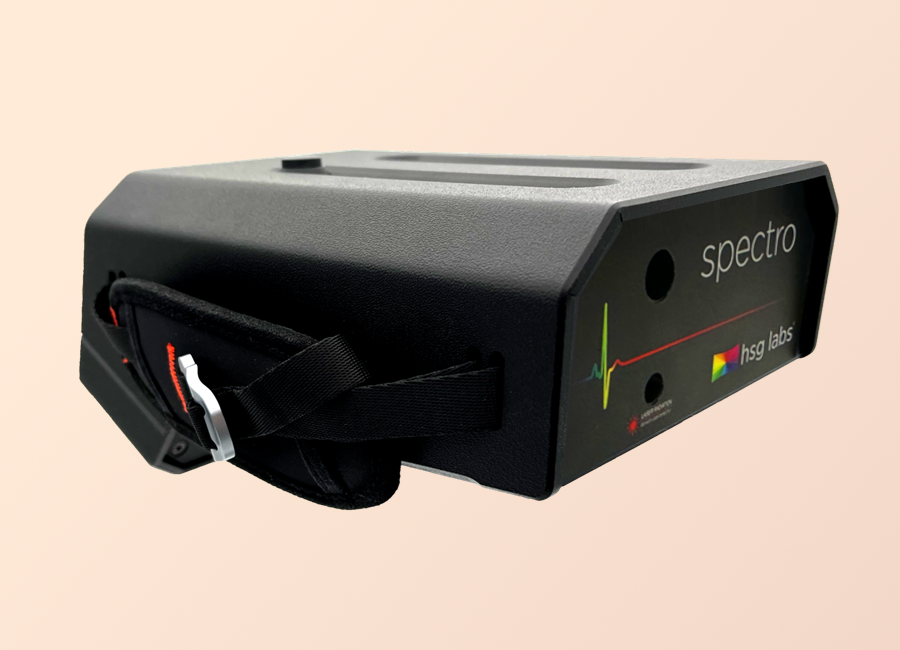

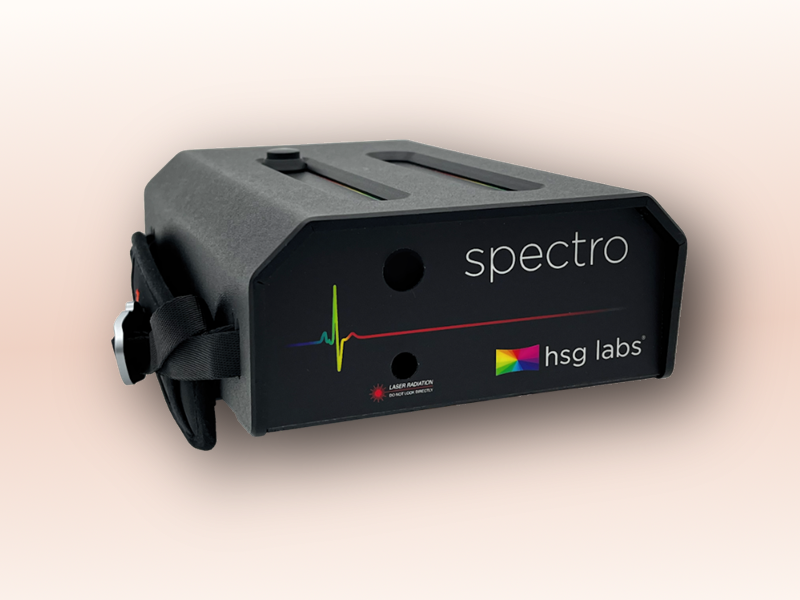

INTRODUCING: A state-of-the-art handheld “Spectrocolorimeter / Chroma Meter”, Spectro v3 is a major advancement in color and luminance measurement.
Ground-breaking technology for immediate and highly precise visible light spectrum analysis in any environment.

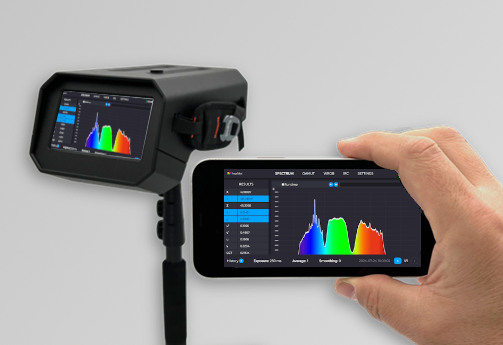

Spectro has a built-in User-Interface and Laser-Guidance that allows for easy and accurate operating and reading and storing of results data.
Ergonomically designed, robust and lightweight, it meets the needs of in-field and in-lab applications.
Product Features
• Accurate light and color readings for excellent repeatability
• Superior pixel resolution provides more data points per nm
• Calibration - NIST traceable; CIE Illuminant A and custom Illuminant available
• Performs in ultra-bright to ultra-low luminance environments
• Portable and handheld
Point and click from Any distance, the unit has a 2* FOV
• Fast alignment thanks to the integrated targeting laser pointer
• Quick measurement integration time
• Internal switchable ND filter calibrated from factory for single chip color wheel projectors
• Easy UI navigation and reading
• Stores 999 data points, exportable into a CSV file
• USB transfer of data
• Software integration with 3rd Party calibration support:
o ColourSpace (Light Illusion)
o Calman (Portrait Displays)”
• Excellent battery life – software optimized to minimize power usage
• Ergonomically designed to be lightweight and for easy handling and use
What can the Spectro be used for:
As used by:
Technical Specification
• Spectral range - 380nm to 780nm Photometric CIE values
• Spectral bandwidth - FWHM: 1.8nm
• Color accuracy (Illuminant A) - ±0.0015 for CIE 1931 (xy)
• Pixel Resolution 0.3 nm/pixel
• Calibration* - NIST traceable; CIE Illuminant A and custom Illuminant
• Repeatability - <1%
• Luminance range - Greater than 200,000 cd/m²
• Luminance accuracy - ±1%
• Measuring values - cd/m or fL, Y, CCT/xy/u’v’/uv/wavelength peak
• Measuring aperture - 2° (FOV)
• Power - USB-C, Li-ion with 4hr battery life
• Dimensions - 6.4” x 5.5” x 4”/162 x 140 x 101mm, 2.64lbs/1.2kg
• Weight: 2.64lbs/1.2kg
*Calibration recommended every 1 year, dependent on requirements
Specifications are subject to change without notice
